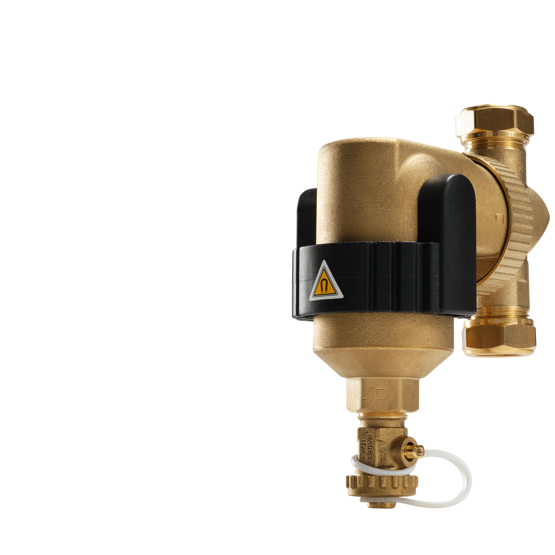

SpiroTrap MBC -Brass -Magnet -Uni

A small brass dirt separator with magnet and a 22 mm - 1" universal connection

Magnet
A small brass dirt separator with magnet and a 22 mm - 1" universal connection

Product variants

Select the desired connection below and get all (technical) product data!

Article number UE022WH
Product type SpiroTrap MBC -22mm -Magnet -Uni

The optimal position of a SpiroTrap dirt separator

To optimally protect your heating or cooling system, the correct placement of a dirt separator is essential. A dirt separator is preferably installed at the point where the system water enters the heating or cooling unit, usually in the return line.

Why on the return line?

  • Here, the water flows back to the (sensitive) system components, such as pumps, heat exchangers and valves.
  • Trapping debris at this point will prevent it from causing damage to these crucial parts.
  • This not only improves the performance and lifespan of your system, but also reduces the risk of breakdowns and maintenance costs.

With a strategically placed dirt separator from Spirotech, your system stays clean, efficient and protected from contamination, even under the most demanding conditions. This way you ensure a problem-free and durable system.

Positioning the dirt separator in your system
