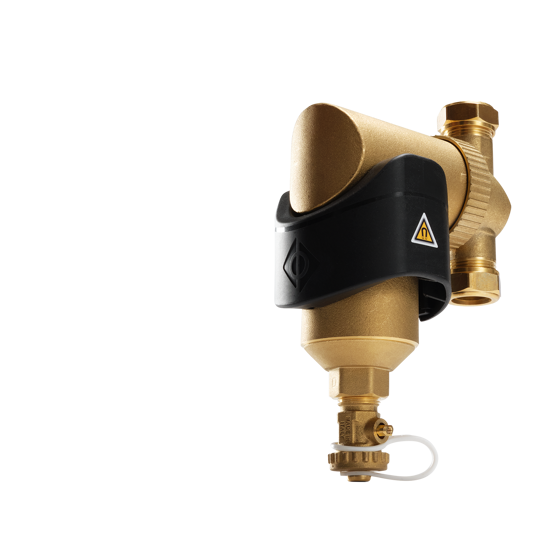

SpiroTrap MB3 -Brass -Magnet -Uni

A brass dirt separator with magnet and a 22 mm - 2" universal connection

Magnet

The benefits of the UE SpiroTrap MB3 dirt separators

  • Very small particles, from 5 μm (= 0.005 mm) are separated and removed
  • Including a magnet for extra protection and high efficient removal of magnetite
  • Dirt can be drained while the system is in operation
  • No shut-off valves or bypass required
  • Applicable with 50/50 Ethylene Glycol / Water (Volume)
  • Constant low pressure drop
  • Maintenance only takes a few seconds and is not a dirty job compared to a filter solution
  • No unnecessary downtime
  • Connection diameters from 22 mm - 2" (G2)

Product variants

Select the desired connection below and get all (technical) product data!

Article number UE022WJ
Product type SpiroTrap MB3 -22mm -Magnet -Uni

To optimally protect your heating or cooling system, the correct placement of a dirt separator is essential. A dirt separator is preferably installed at the point where the system water enters the heating or cooling unit, usually in the return line.

Why on the return line?

  • Here, the water flows back to the (sensitive) system components, such as pumps, heat exchangers and valves.
  • Trapping debris at this point will prevent it from causing damage to these crucial parts.
  • This not only improves the performance and lifespan of your system, but also reduces the risk of breakdowns and maintenance costs.

With a strategically placed dirt separator from Spirotech, your system stays clean, efficient and protected from contamination, even under the most demanding conditions. This way you ensure a problem-free and durable system.

Positioning the dirt separator in your system
