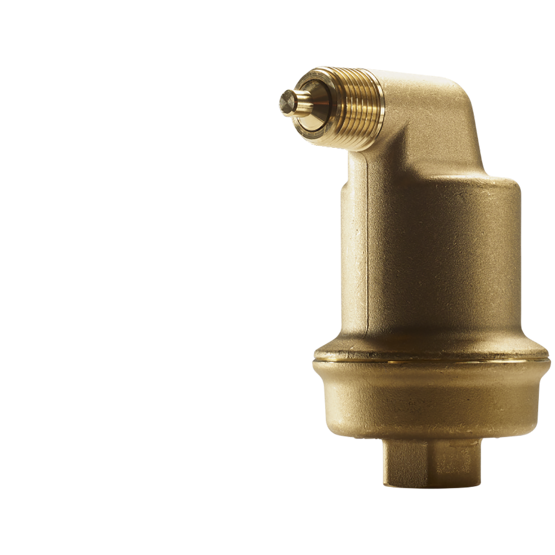

SpiroTop -Brass

A brass air vent for heating- and cooling systems with a ½" connection

The benefits of the AB SpiroTop, fully automatic air vent

  • Special valve construction ensures valve is closed completely
  • Long lasting valve seat
  • Solid plastic, robust floats which cannot rupture
  • Large air gap between the valve and the water (at least 40 mm) prevents valve contamination and leaks
  • Applicable with 50/50 Ethylene Glycol / Water (Volume)
  • ½" connection prevents pipette effect

Available variant(s)

Article number AB050
Product Type SpiroTop -½"

Optimal placement of the SpiroTop air vent

A float air vent such as the SpiroTop is essential to prevent air accumulation in an installation. Free air can cause blockages in the pipes that interfere with the operation and efficiency of the system.

Common locations where air accumulation occurs are:

  • The highest point of the installation.
  • Boilers, heat exchangers and buffer tanks.

By strategically placing SpiroTop air vents in these places, you prevent air accumulation and ensure stable and efficient operation of the system.

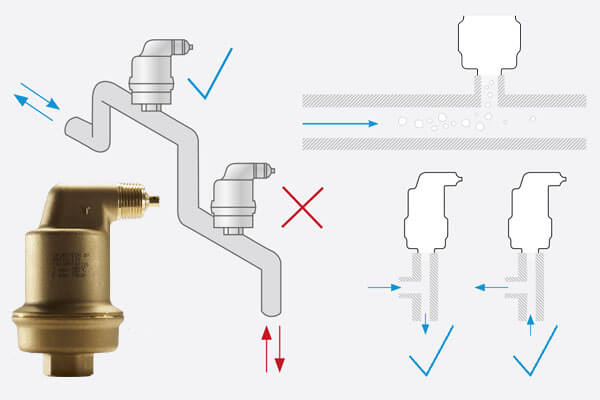

Positioning of the SpiroTop automatic air vent
